Core Mechanical & Operating Differences
Comparing daily yield, refrigeration horsepower, water feed requirements, and harvest mechanisms.
| Technical Feature | Residential Undercounter Ice Makers | Commercial Restaurant / Bar Ice Machines |
|---|---|---|
| Daily Ice Yield | 25 to 55 lbs per 24 hours (with 20–35 lb insulated storage bin). | 200 to 1,500+ lbs per 24 hours for continuous commercial service. |
| Refrigeration System | 1/8 to 1/4 HP hermetic compressor; built into residential refrigeration systems or undercounter cabinetry. | 1/2 to 2+ HP commercial compressors; remote air-cooled, water-cooled, or self-contained condensers. |
| Harvest Cycle Technology | Electric wire-cutting grids, thermal slab drop, or motorized twist ejector trays. | Hot-gas bypass solenoid valve injection directly defrosting vertical nickel-plated evaporators. |
| Drainage & Plumbing | Gravity drain or small internal 120V drain pump discharging into kitchen sink lines. | Dedicated commercial floor sink with mandatory 1-inch air gap preventing backflow contamination. |
| Primary Brands Serviced | Sub-Zero, Scotsman, U-Line, KitchenAid, Thermador, Whirlpool. | Manitowoc, Hoshizaki, Scotsman Commercial, Ice-O-Matic, True Refrigeration. |
Residential Ice Maker Diagnostics
Residential undercounter clear-ice units (such as Sub-Zero UC-15I and Scotsman Brilliance) require precise ambient temperature balance. Common faults include frozen water fill tubes, failing cutting grid transformers, mineral scale buildup on water cascade plates, and faulty thermistors causing premature harvest cycling.
Explore our dedicated Residential Ice Maker Repair service for detailed diagnostic steps and same-day home dispatch.
Commercial Ice Machine Servicing

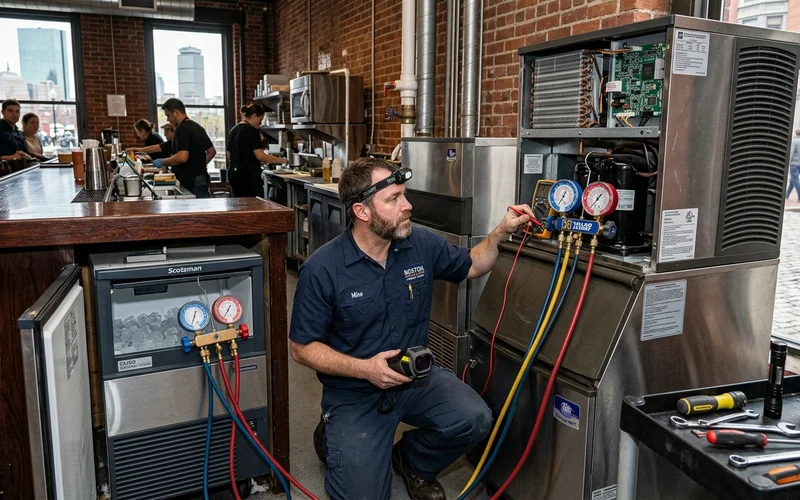

For Boston bars, hotels, and seafood restaurants, an ice machine failure halts beverage and kitchen service immediately. Commercial units operate under high duty cycles, requiring rapid diagnosis of hot-gas harvest valves, high-pressure water condenser regulation, float switch sensors, and water curtain switches.
Visit our Commercial Appliance Repair page for 2-hour priority emergency commercial dispatch protocols.
